Web Dashboard

The dashboard is 3270Connect's browser-based operations console. It shows what your runs are doing right now — live workflow counts, durations, latency percentiles, host CPU and memory — and lets you launch runs, inspect configuration, tail logs and terminate processes without leaving the page.

A tour of the console

Uploading a workflow and setting a load profile, then the process table, the live screen flow, the charts, the log stream and the four palettes. Recorded against the bundled sample host — every number on screen is from that run.

Runs entirely offline

Every asset the console needs — styles, scripts, charting library and icons — is embedded in the 3270Connect binary and served from localhost. Nothing is fetched from a CDN, so the dashboard behaves identically on an air-gapped build server and on a laptop. Web fonts are the single optional extra; when they cannot be reached the console falls back to your local monospace stack.

Starting the dashboard

Dashboard onlyCustom portAlongside a load test

3270Connect -dashboard

Then open http://localhost:9200/dashboard.

3270Connect -dashboard -dashboardPort 8500

3270Connect -config workflow.json -concurrent 25 -runtime 600

The dashboard starts automatically whenever -concurrent is greater than 1 or -runtime is set, so a load test is observable without extra flags.

Launching 3270Connect with no command-line arguments at all — for example by double-clicking the executable — also forces dashboard mode.

Flag	Default	Purpose
-dashboard	off	Start the dashboard server.
-dashboardPort	9200	Port for the dashboard HTTP listener.
-dashboardBind	localhost	Interface to listen on. An address, or all for every interface. Overrides DASHBOARD_BIND.

The console answers GET /healthz with a small JSON document — status, version, pid and uptime — for a container healthcheck or an uptime probe. It reads nothing from disk, so a busy load run cannot make the console look unhealthy. / redirects to /dashboard.

Bound to localhost

The listener binds localhost, so the console is not on the network unless you put it there. To view it from another machine, forward the port over SSH: ssh -L 9200:localhost:9200 user@runner-01.

Change it with -dashboardBind or the DASHBOARD_BIND environment variable — and know what you are turning on when you do. The console has no sign-in, and Start Process launches a load run, against any host it is given, for whoever can open the page. On a shared network put an authenticating reverse proxy in front of it.

In a container

The published image sets DASHBOARD_BIND=0.0.0.0 because it has to: a published port forwards to the container's external interface, so a loopback listener inside one refuses every connection from the host while the container still reports healthy. What the console is exposed to is then decided by the port mapping, which the supplied stacks keep on 127.0.0.1.

The same setting exists for the REST API as -api-bind / API_BIND.

Layout at a glance

The console is a single page in three bands: a command bar and status bar pinned to the top, a metrics area (KPI tiles, charts and the live screen flow), and the process table.

Command bar

Holds the primary actions — Start Process, Start App, Console Logs, Refresh and the shortcut sheet — alongside a live readout of running processes, in-flight workflows and console uptime. The search field opens the command palette.

Status bar

Controls how the page stays current, and how it looks.

• Live switch — pauses and resumes polling. The ring to its left counts down to the next refresh, and pulses when a request is in flight.
• Interval — 1 s, 5 s, 10 s, 30 s or 60 s.
• Theme, density and effects toggles — see Appearance.

Polling pauses automatically while any dialog is open, so nothing shifts under the cursor while you are reading a log or filling in a form, and resumes when the dialog closes.

Key metrics

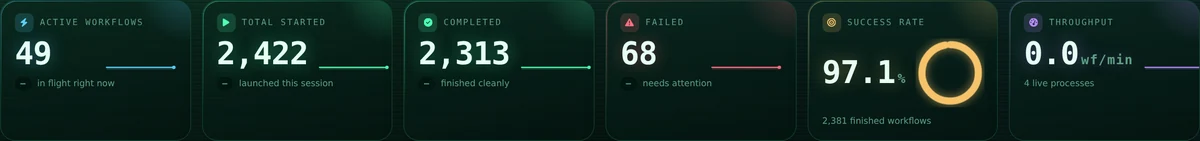

Six tiles summarise the whole fleet. The counters carry a sparkline built from the samples this browser session has collected, so you can see the shape of the last few minutes rather than just the current number.

Tile	Meaning
Active Workflows	Workflows in flight across every process.
Total Started	Workflows launched since the processes started.
Completed	Workflows that finished without error.
Failed	Workflows that terminated with an error. The tile turns red as soon as this is non-zero.
Success Rate	completed / (completed + failed), drawn as a gauge — green at 99 % and above, amber from 90 %, red below.
Throughput	Workflows completed per minute, derived from the change between polls.

The chip under each counter shows the change since the previous poll, so a stalled run is obvious at a glance: started keeps climbing while completed does not.

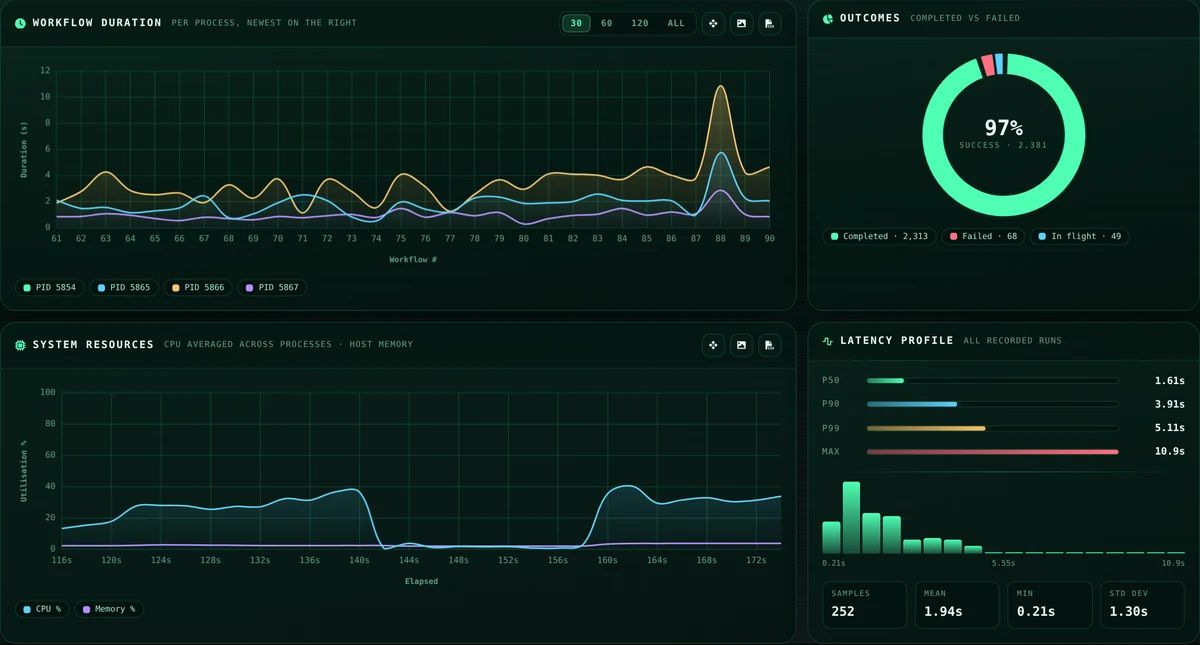

Charts

Workflow Duration plots one series per process, newest run on the right. Use the legend chips below the chart to isolate a single PID.

Outcomes breaks finished work into completed, failed and in-flight, with the success percentage in the centre.

System Resources shows CPU averaged across all 3270Connect processes and host memory utilisation over time.

Latency Profile summarises every recorded duration: p50, p90, p99 and max as bars, a distribution histogram beneath them, and sample count, mean, min and standard deviation below that. This is the panel to check when average duration looks acceptable but users are reporting slow sessions — a healthy mean with a p99 several times larger points at a tail problem rather than a general one.

Chart controls

• Window presets (30 / 60 / 120 / ALL) limit how many data points the duration and resource charts show.
• Scroll to zoom, drag to pan, and the reset button returns to the full range.
• Export each chart as a PNG image or its underlying series as CSV.

Live screen flow

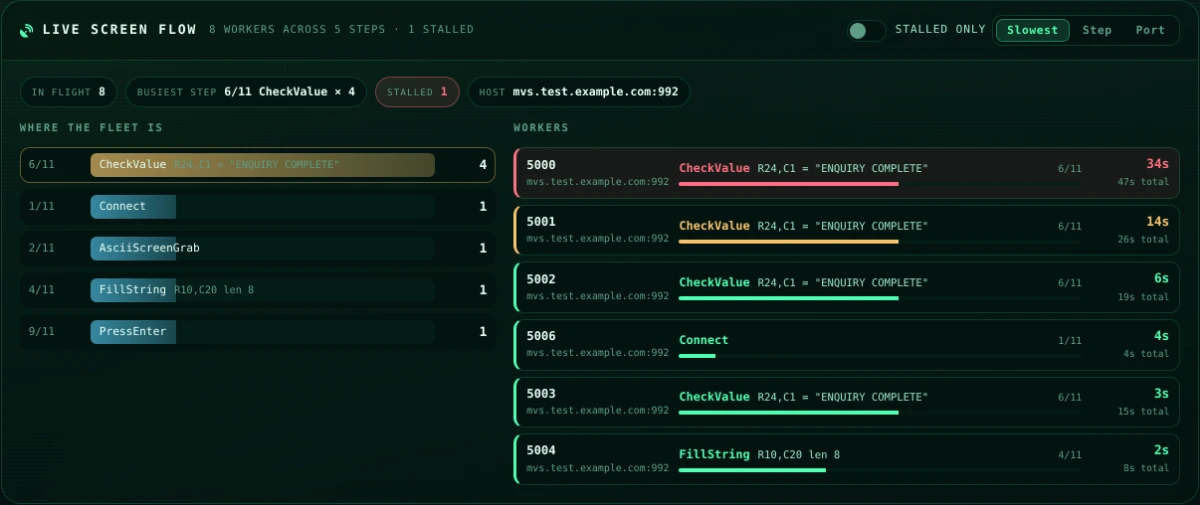

Every other panel counts workflows. This one shows the virtual users themselves: which step of the screen flow each is executing right now, and how long it has been sitting there. It appears as soon as a run has workers in flight and disappears when the last one finishes.

The panel answers the question the counters cannot: what is the run doing at this second, and is it still moving?

Where the fleet is

The left column groups every worker by the step it is on, busiest first. Each row shows the step's position in the workflow (6/11), its type, the screen position it works on, and how many workers are there.

This is where a stall becomes obvious. Workers spread evenly across steps is a run making progress; every worker piled onto one step is a host that is slow at that particular transaction, not slow in general — and that tells you which screen to investigate rather than which server.

Click a step to isolate it. The worker list beside it narrows to the workers standing on that step, and a line above both columns says what is being hidden and offers to show everything again. Click the same step a second time to clear it.

Workers

The right column is one row per virtual user: its script port, the host it is talking to, the step it is executing with the screen position or expected value, its progress through the workflow, and two times.

Figure	Meaning
The large time	How long this worker has been on its current step.
… total	How long its workflow has been running altogether.

The first is the one that matters. A worker two minutes into its workflow is ordinary; a worker two minutes into a single CheckValue is a host that has stopped painting screens. Rows are tinted by it — green while moving, amber past 10 s on one step, red past 30 s — and sorted by it, so whatever is stuck is at the top without scrolling.

Connect, Disconnect and StepDelay are never coloured as stalls however long they take: one waits on a TCP session and a host greeting, and a deliberate delay is a delay.

These clocks tick every second regardless of your refresh interval, so a stalling worker keeps counting even at 60 s polling.

Click a worker to see its screens. The row opens the screen captures viewer already filtered to that virtual user and following it, so the answer to "what is on the screen of the worker that has been on CheckValue for forty seconds" is one click away. Rows only lead somewhere when the run's workflow declares an OutputFilePath.

Controls

• Search narrows the worker list by script port, pid, host, step type or the step's screen position.
• Stalled only filters the list to workers that have been on one step for more than 10 seconds.
• Slowest / Step / Port sorts the workers. Sorting only re-applies on a poll, so a row does not move out from under the pointer while you read it.

The list draws at most 60 rows — worst first, so the cut falls on the healthy end — and offers to show the rest. The fleet column always counts every worker, filtered or not.

What a step reports, and what it does not

A CheckValue shows the text it is waiting for, because that is the point of the step. A FillString shows its position and field length but never the value it types — workflows fill in usernames, passwords and account numbers, and this detail is published to the metrics file that the console, the REST API and any MCP client can read.

Runs started by an older build

Time on step is a newer field. A worker from a process that does not publish it shows -- rather than 0s, which would read as "it just moved on".

Reading the same data from an AI client

The process table and the KPI tiles read the per-process metrics files every running 3270Connect writes. The MCP Server reads the same files, so an assistant can list runs, report percentiles and stop a run in conversation — list_load_tests, get_load_test_metrics, stop_load_test. Starting a run that way is the same primitive the Start process button uses.

Process table

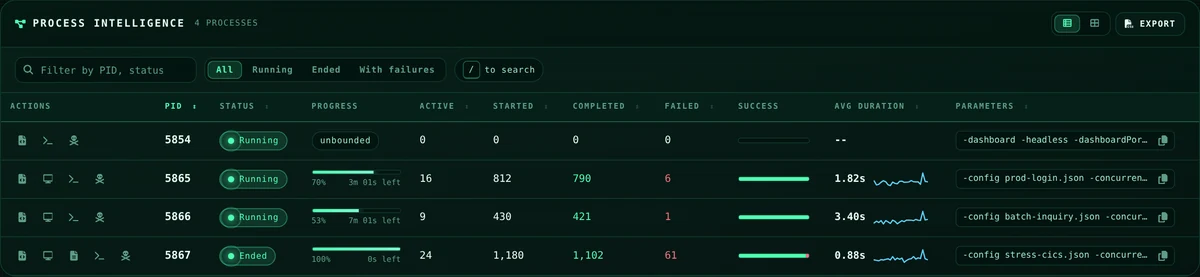

One row per 3270Connect process, refreshed on every poll.

Column	Notes
Actions	Per-process operations — see below.
PID	Operating-system process ID.
Status	Running, Ended or Killed, with a pulsing dot while the process is alive.
Progress	Elapsed against -runtime, with the time remaining. Runs without a runtime limit show unbounded.
Active / Started / Completed / Failed	Per-process workflow counters.
Success	Completed-versus-failed ratio as a split bar; hover for exact figures.
Avg Duration	Mean workflow duration with a sparkline of the last 24 runs.
Parameters	The command line the process was started with, with a copy button.

Every column marked sortable can be clicked to sort ascending or descending. The toolbar above adds free-text filtering across PID, status and parameters, status filters (All, Running, Ended, With failures), a table/card layout switch, and Export to CSV of whatever is currently visible.

Tip

Press / anywhere on the page to jump straight to the filter field.

Row actions

Action	Available when	Opens
Workflow JSON	The process was started with a config file	The workflow definition, syntax highlighted with line numbers, with copy and download
Screen captures	The workflow declares OutputFilePath	Every screen the run captured, one at a time
Performance summary	The run has ended	The summary_<pid>.txt report
Logs	Always	The console stream, pre-filtered to that PID
Terminate	Always	A confirmation dialog, then sends a kill signal

The dashboard refuses to terminate its own process, so you cannot accidentally shut down the console you are using.

Launching a run

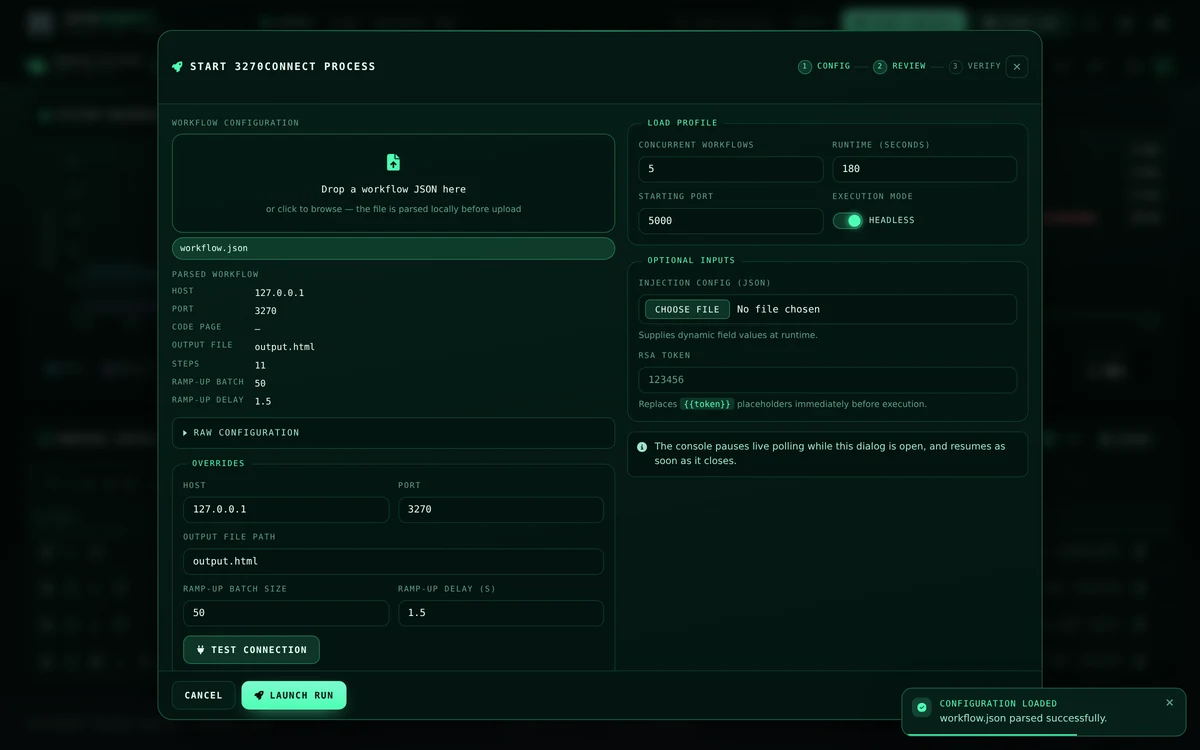

Start Process opens a two-column dialog that mirrors the command-line options.

1. Drop a workflow JSON onto the upload zone, or click to browse. The file is parsed in the browser before it is uploaded, so host, port, code page, output file, step count and ramp-up settings are shown immediately — and a malformed file is reported before anything reaches the server. The full document is available under Raw configuration.
2. Override host, port, output file path, ramp-up batch size or ramp-up delay for this run only. The uploaded file is not modified. Test connection dials the host and port and reports the result inline, which is worth doing before committing to a long run.
3. Set the load profile — concurrent workflows, runtime in seconds, starting port, and whether to run headless.
4. Optionally attach an injection config and an RSA token that replaces {{token}} placeholders immediately before execution.

Start App launches one of the bundled sample 3270 applications on a port of your choosing, which is the quickest way to exercise a workflow without a real host.

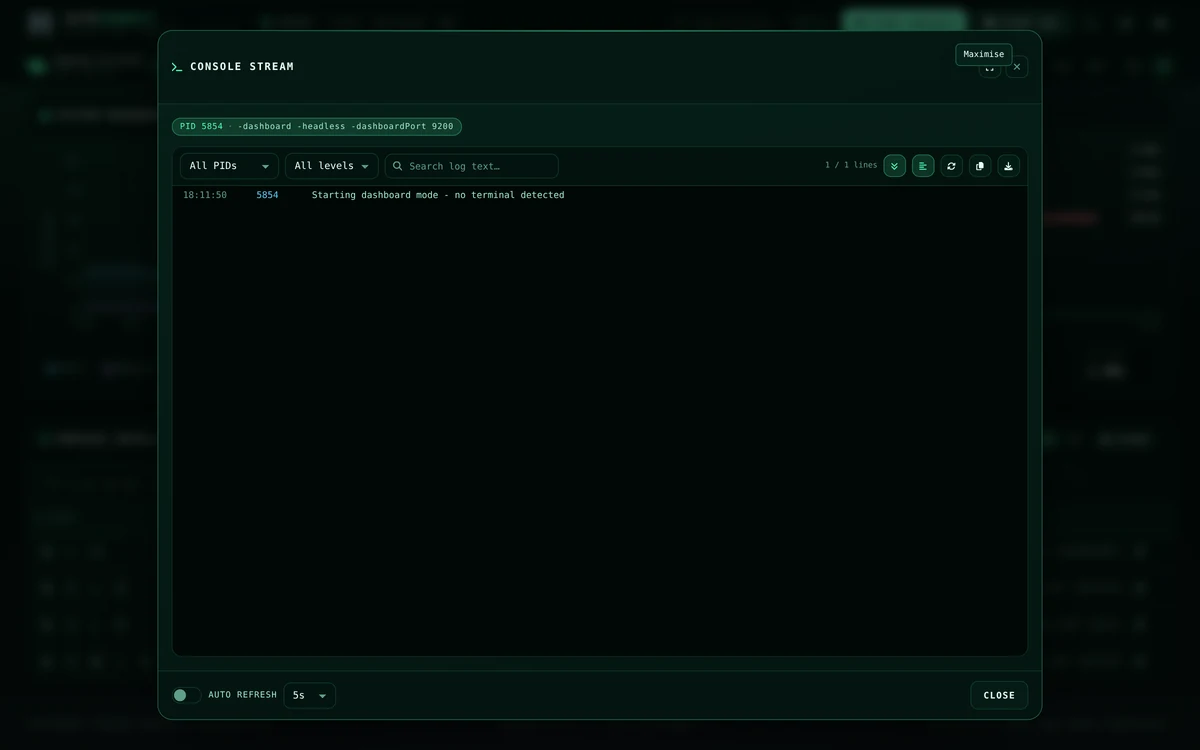

Console logs

The log viewer aggregates logs/logs_<pid>.json across every process.

• Filter by PID, by severity (errors, warnings, success) and by free text, with matches highlighted in place.
• Follow tail keeps the newest line in view; turn it off to scroll back without being yanked forward.
• Wrap toggles soft wrapping for long lines.
• Auto refresh polls the log endpoint on its own interval, independent of the page refresh.
• Copy the whole stream to the clipboard or download it as a .log file, and maximise the dialog for dense output.

Severity is inferred from the message text, so lines mentioning failure, timeouts or refusals are marked as errors even though the underlying log format has no explicit level field.

Screen captures

Every AsciiScreenGrab step appends the terminal to the workflow's OutputFilePath. In a concurrent run that is one file holding every screen of every virtual user, in the order they were captured — which is why the console does not show it to you as a file. It shows it as a list of screens.

Open it from a process row's screen captures action, by clicking a worker in the live screen flow, from the command palette, or with V.

The strip

The left rail is one entry per screen, newest at the bottom, each showing its sequence number, the time it was taken, the worker that took it, the step it came from, and the line of the screen that changed — not the application's title, which is identical on every screen it paints.

Narrow it three ways, in any combination:

• Search matches the text of the screens themselves, so INVALID PASSWORD finds the moment a run started failing.
• Worker narrows to one virtual user. Script ports are listed most-recently-active first, because a port belongs to one workflow execution rather than to a worker for the life of the run.
• Step narrows to one step of the workflow — every screen grabbed at step 6, across all workers, is how you compare the same moment between them.

Consecutive identical screens from the same worker are folded into one entry with a ×n badge. A long run keeps its most recent 2,000 screens in the browser and says how many aged out.

The screen

The screen is drawn as a screen: 24 rows, 80 columns, a column ruler, row numbers, and an underline where the host left the cursor.

Hover for the row and column. Drag across a field for its length. The readout below gives 1-based Row, Column and Length — exactly the shape a workflow step is written in — and the three buttons beside it copy the selection as a Coordinates block, a FillString step or a CheckValue step, ready to paste into a workflow. Double-click or press Esc to drop the selection.

Changes tints every character that differs from that worker's previous screen, which is what makes "the host repainted nothing" legible at a glance.

Following a live run

Follow selects each new screen as the run captures it; picking a screen by hand turns it off so the view stops moving while you read, and pressing F turns it back on. With a worker filter applied, following follows that worker.

Polling asks only for the bytes of the capture file it has not already read, so following a run that has written a hundred megabytes of screens costs one screen's worth of transfer per poll.

Left and Right step through screens, Home and End jump to the first and last, and the toolbar copies or downloads the current screen. The download button in the header saves every screen the filter currently shows as one plain-text file.

Inspecting a workflow

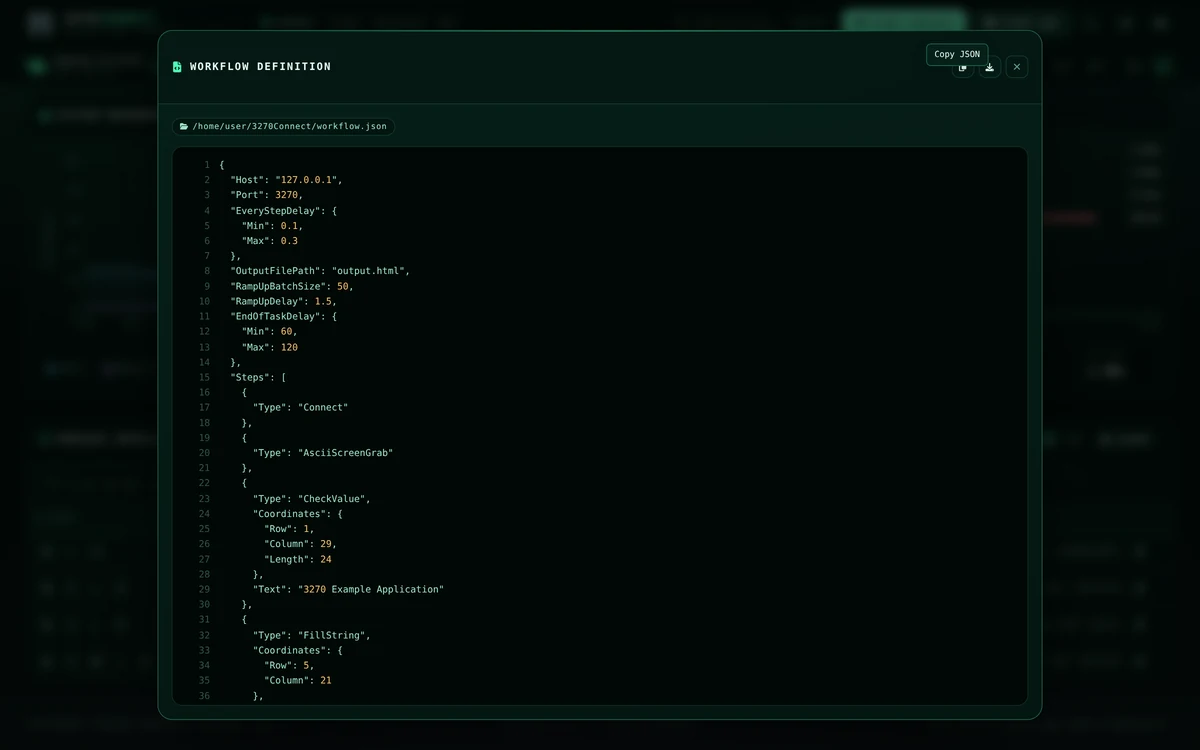

The workflow viewer reads the configuration file recorded for a process, pretty prints it, and highlights keys, strings, numbers and literals with line numbers down the side. It is the fastest way to confirm which revision of a workflow a given PID is actually running.

Command palette

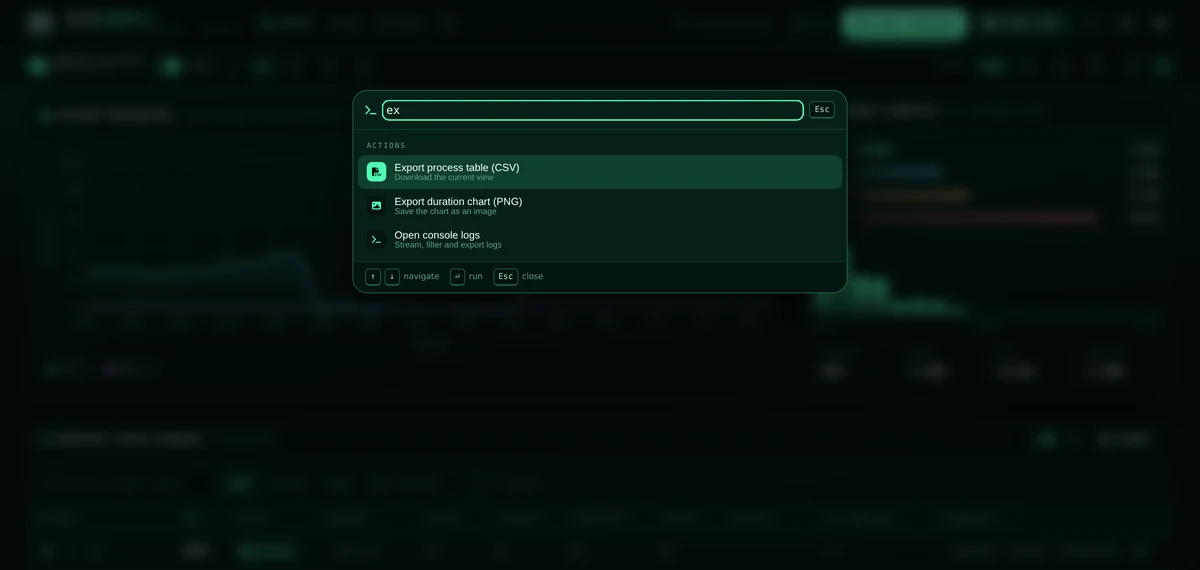

Press Ctrl+K (Cmd+K on macOS) to open the palette. It searches every action, view setting and per-process operation — including "PID n · logs" and "PID n · terminate" for each running process — and matches on subsequences, so exp finds Export process table. Navigate with the arrow keys, run with Enter, dismiss with Esc.

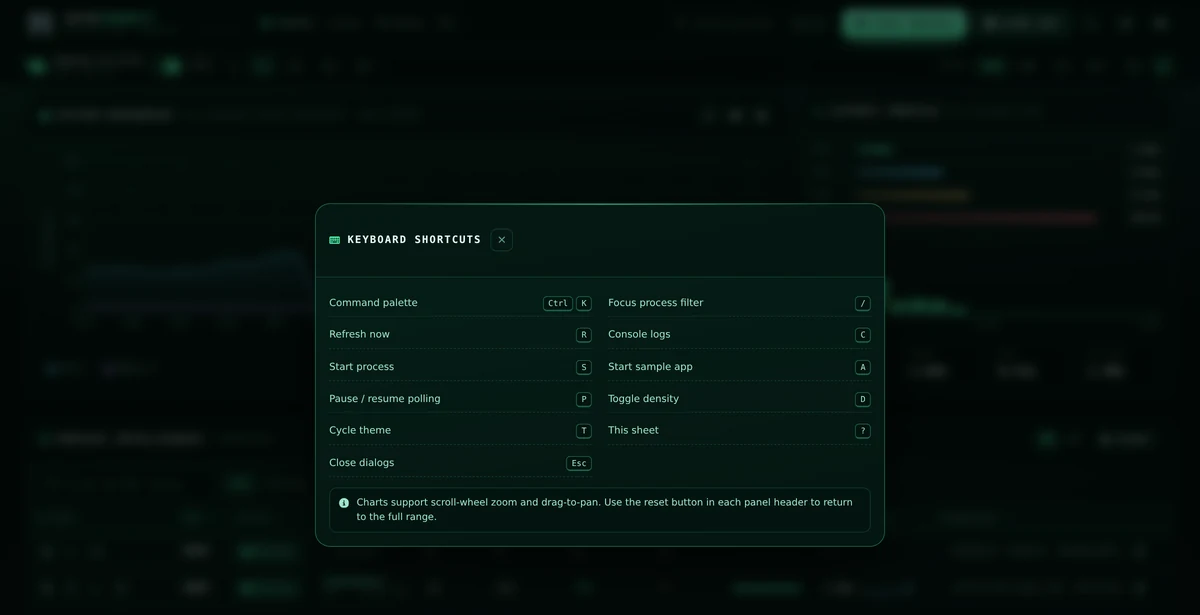

Keyboard shortcuts

Key	Action
Ctrl+K	Command palette
/	Focus the process filter
R	Refresh now
C	Console logs
V	Screen captures
S	Start process
A	Start sample app
P	Pause / resume polling
D	Toggle compact density
T	Cycle theme
?	Show this sheet
Esc	Close the active dialog

Single-key shortcuts are ignored while you are typing in a field or while a dialog is open.

Appearance

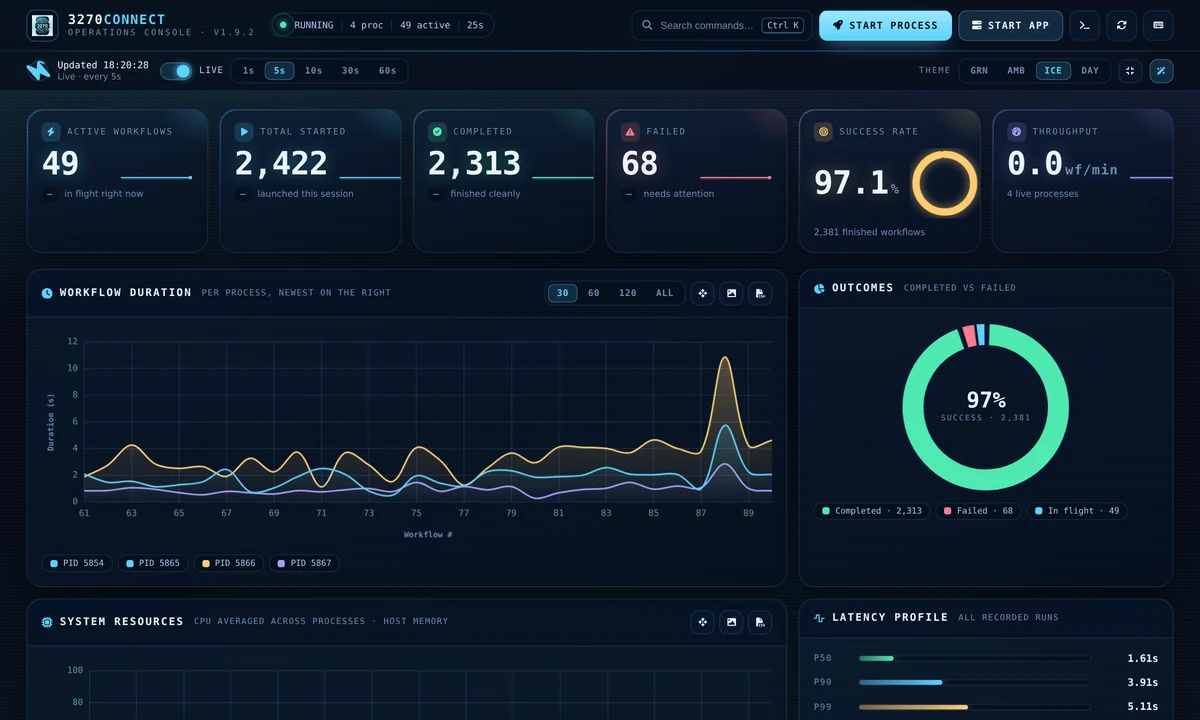

Four themes ship with the console. Every colour is a CSS custom property, so charts, gauges and sparklines all re-skin together when you switch.

Phosphor — the default terminal palette.

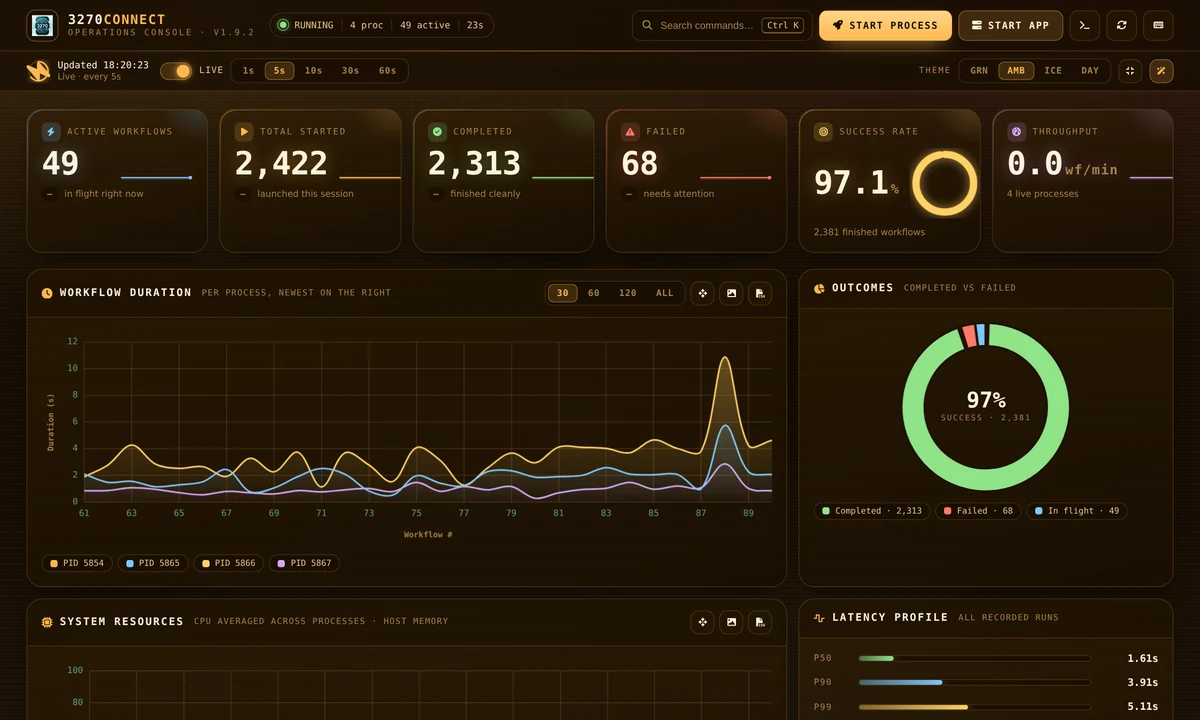

Amber — warm vintage CRT.

Ice — cool, high contrast.

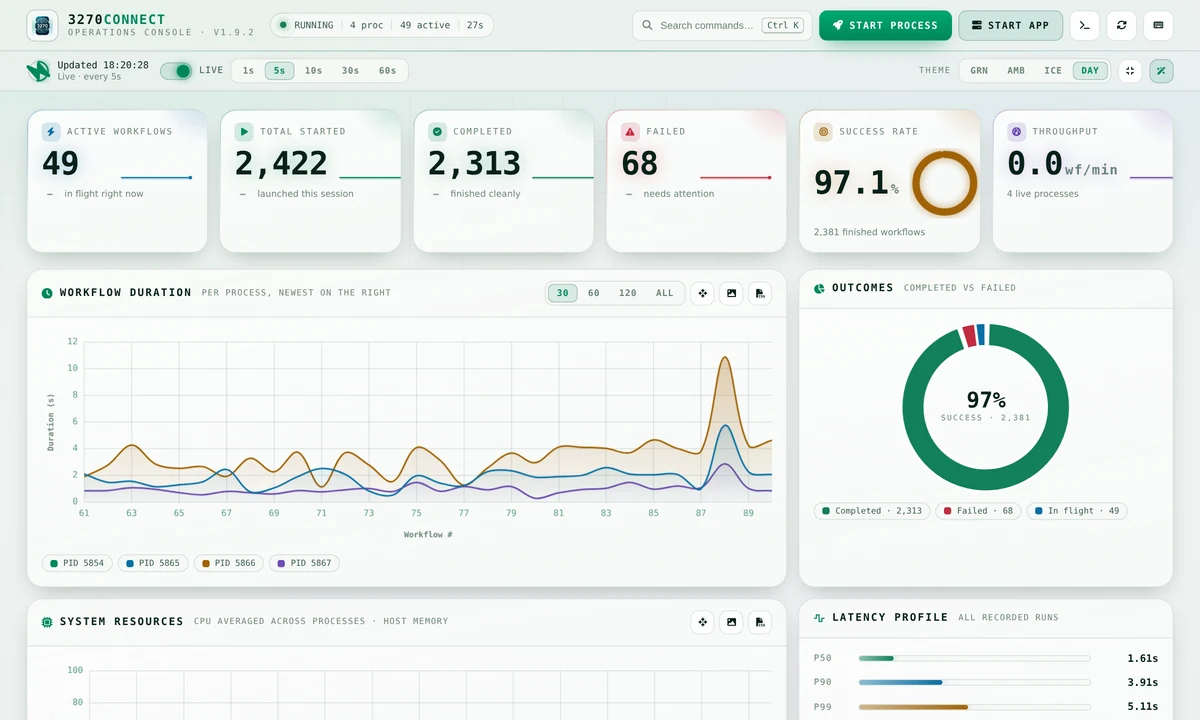

Daylight — light mode for bright rooms and projectors.

Two further controls sit beside the theme picker:

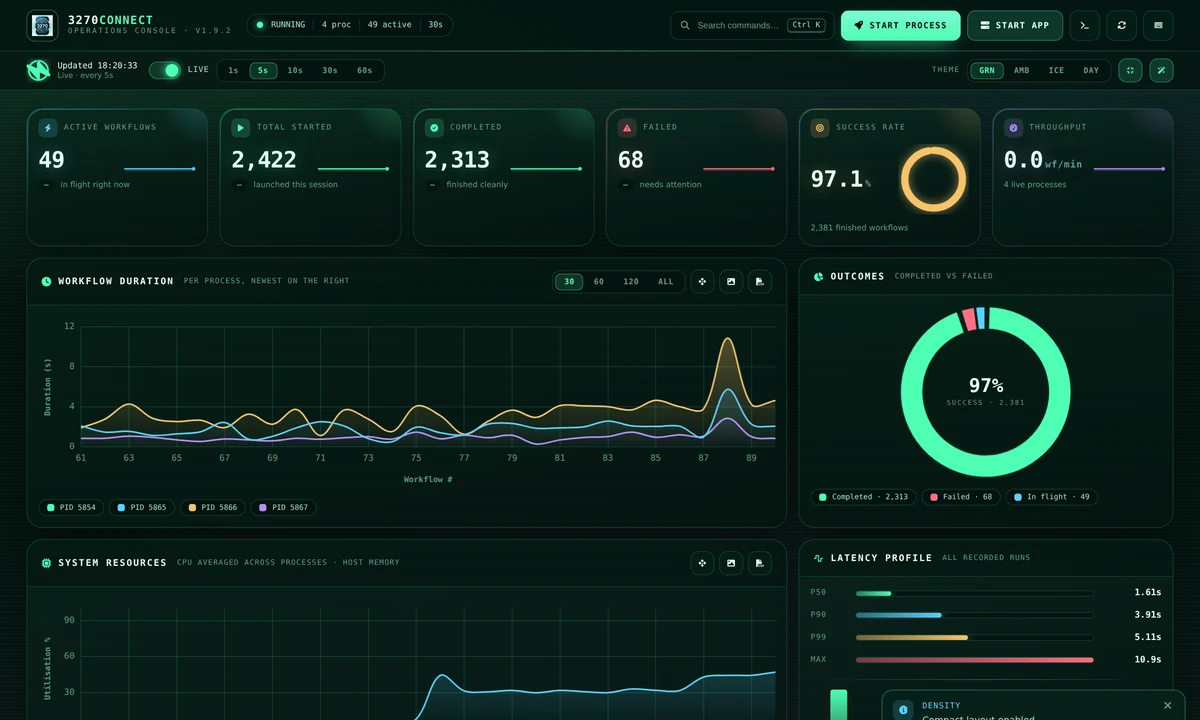

• Density switches between comfortable and compact rows — compact tightens padding and type scale to fit noticeably more processes on screen, which helps on large fleets.
• Effects turns off the CRT scanlines and the drifting grid backdrop for a flatter, quieter surface. The console also honours your operating system's reduce motion setting automatically.

Your theme, density, effects, layout, refresh interval and status filter are remembered in the browser's local storage, so the console comes back the way you left it.

Small screens

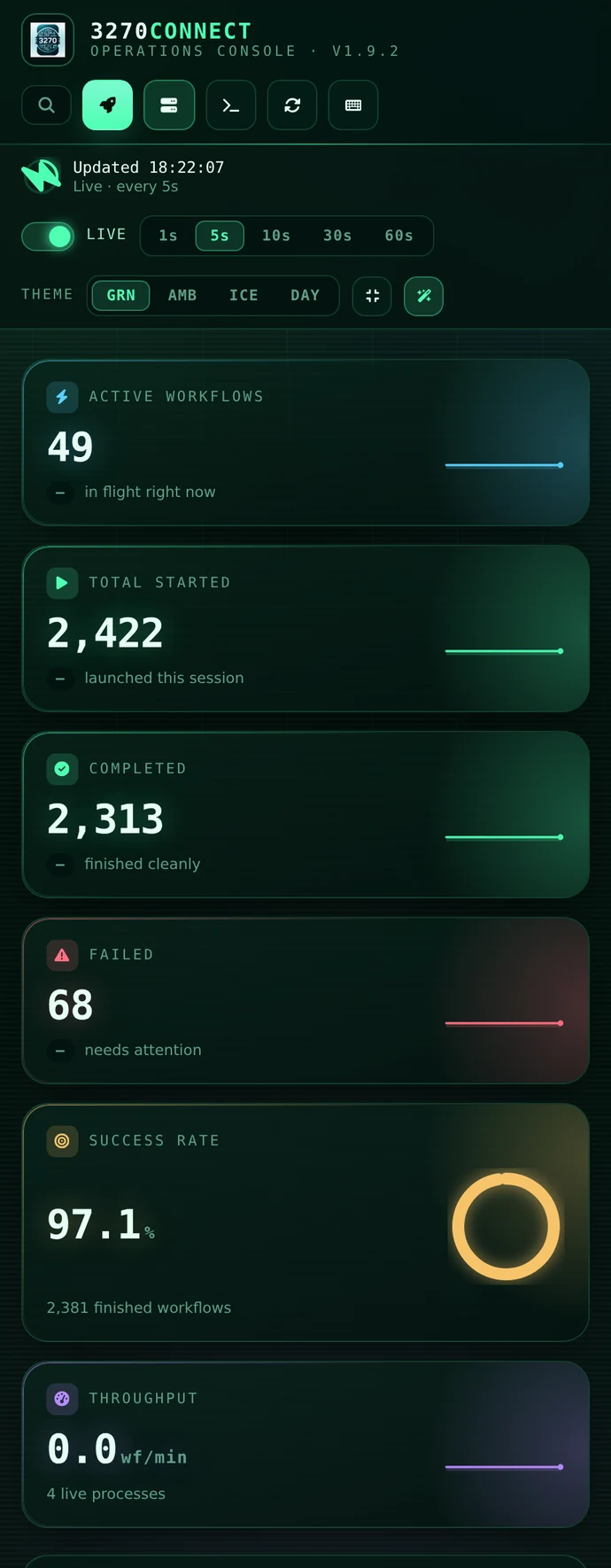

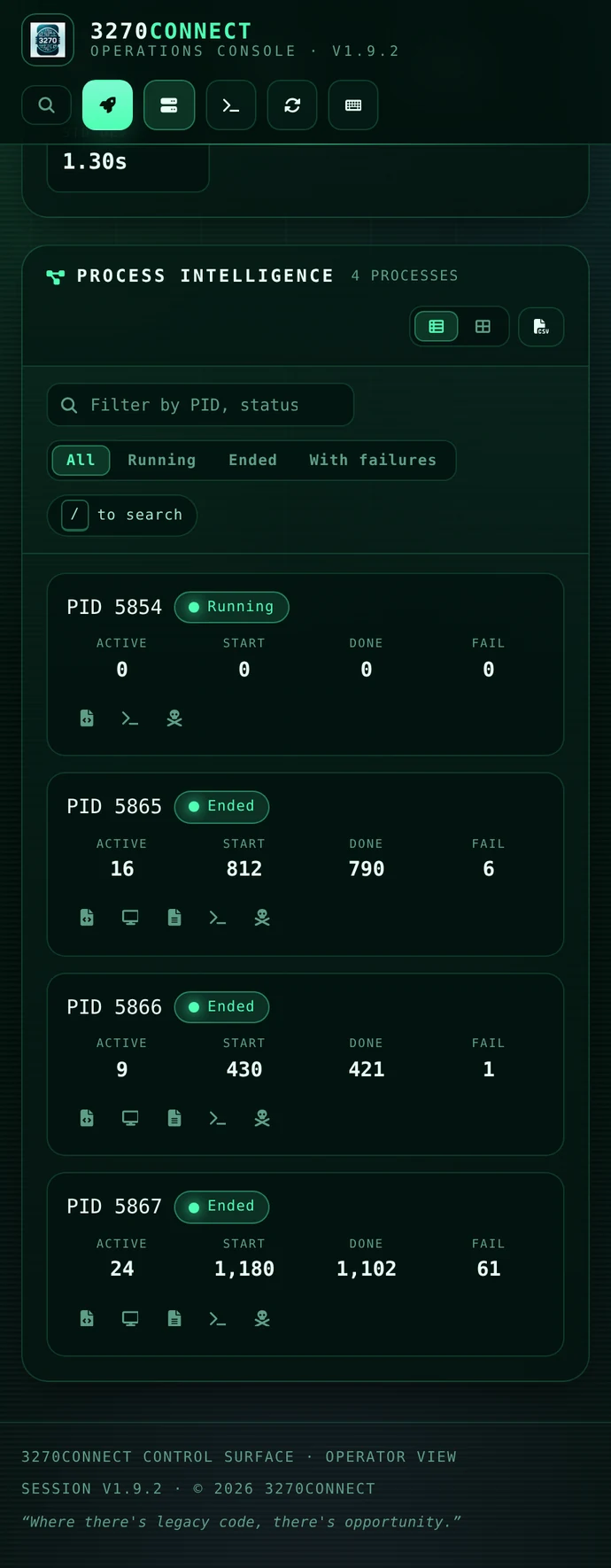

Below roughly 780 px the process table becomes a card list and the panels stack into a single column, so the console stays usable from a phone or a narrow split-screen window. You can also force the card layout at any width from the layout switch in the panel header.

Where the data comes from

The console is a thin layer over files that 3270Connect already writes.

Data	Location
Per-process metrics	<user config dir>/3270Connect/dashboard/metrics_<pid>.json
Console logs	logs/logs_<pid>.json, relative to the working directory
Performance summaries	logs/summary_<pid>.txt
Workflow definitions and HTML output	Wherever the workflow's configFilePath and OutputFilePath point

The user config directory is ~/.config on Linux, ~/Library/Application Support on macOS and %AppData% on Windows. Each process rewrites its own metrics file every two seconds; stale entries for processes that are long gone are cleaned up automatically.

HTTP endpoints

The same endpoints the page uses are available to any HTTP client, which makes them convenient for scripting or for a health check.

Endpoint	Method	Returns
/dashboard	GET	The console page
/dashboard/data	GET	Metrics as JSON for every running process — or the last snapshot when none are running
/dashboard/workflow?pid=<pid>	GET	The workflow JSON for a process
/dashboard/output?pid=<pid>	GET	The captured screens. &from=<byte offset> returns only what was appended after that offset; the response reports X-Output-From, X-Output-Total and, when the file has been replaced under the reader, X-Output-Reset
/dashboard/summary?pid=<pid>	GET	The plain-text performance summary
/console / /console?pid=<pid>	GET	Log entries as JSON
/terminal-console?pid=<pid>	GET	The same log lines as plain text
/start-process	POST	Starts a run from a multipart form
/kill?pid=<pid>	POST	Terminates a process
/test-connection	POST	Dials {"host": …, "port": …} and reports reachability
/healthz	GET	Liveness, for a container health check or an uptime probe
/whoami	GET	Who is signed in, and whether they may administer

# Current totals across every live process
curl -s http://localhost:9200/dashboard/data | jq '.aggregated'

# Tail a specific process from the terminal
curl -s "http://localhost:9200/terminal-console?pid=12345"

Where the console has accounts, the same endpoints take a bearer token, and /healthz stays reachable without one so a probe does not need a credential:

curl -s -H "Authorization: Bearer 3270c_…" \
  http://localhost:9200/dashboard/data | jq '.aggregated'

Troubleshooting

The table is empty

The console lists processes that have written a metrics file, and each process writes its file every two seconds — so a run shorter than that may never appear. Note also that starting the dashboard clears metrics from previous runs, so launch it before, or at the same time as, the work you want to watch.

A red banner says contact was lost

The page failed to reach /dashboard/data twice in a row. It keeps showing the last known snapshot and retries on every interval; the banner clears by itself once the server responds. If it persists, the 3270Connect process hosting the dashboard has exited.

Counters look frozen

Check the Live switch in the status bar — polling is paused while any dialog is open, and stays off if you switched it off previously, since the setting is remembered between visits.

Charts are missing and everything else works

This means the vendored charting script did not load. Reload with a cache bypass (Ctrl+Shift+R); the tiles, latency percentiles and table remain fully functional in the meantime.

Sharing the console

The console binds localhost and has no sign-in until you ask for one, which is right for one operator on their own machine and wrong the moment somebody else needs the page. AUTH_MODE=local adds accounts, and with them:

• a sign-in page, per-user passwords and sessions that expire;
• ownership of a run — yours is yours to stop, a colleague's is not, and an administrator may stop anything;
• an administration area at /admin, with every run on the machine and who started it;
• an audit trail of who aimed what at which host.

→ Accounts and Sign-In

Related pages

• Basic Usage — the flags the dashboard's start dialog mirrors
• Accounts and Sign-In — putting a sign-in on the console
• Administration — accounts, groups, tokens, runs and the audit trail
• Dynamic Field Injection — the optional injection config
• Metrics & Monitoring — Prometheus metrics for fleet-scale monitoring
• API Mode — driving 3270Connect over HTTP instead
